gAirHawk GS-260P LIDAR SCANNING SYSTEM
Mobile LiDAR Scanning System with DJI L1 Laser Sensor
gAirHawk GS-260P is a kind of light compact LiDAR point cloud data acquisition system, integrated Livox new generation laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.
Long Detection Range
The Livox Avia adjusts its detection range according to the intensity of ambient light, while maintaining noise at a low level. The detection range increases to 450m under low-light conditions (such as on a cloudy day, indoors or at night), ensuring distant objects are captured in detail.
Dual-Scanning Mode
The use of multi-line laser and high-speed scanning enable the Livox Avia to achieve a point cloud data rate of up to 240,000 points/s. The high performance device is equipped with both repetitive and non-repetitive scanning modes, to meet the needs of different scenarios.
Specification
| gAirHawk GS-260P |
| | Item Name | System Parameter |
|
GS-260P
Parameter | Weight | Less than 0.85 kg |
| Measuring accuracy | Less than 0.10 cm /0.05 @150 m AGL |
| Power range | 12V~16V |
| Working temperature | -20℃~+55℃ |
| Consumption | Average 20W |
| Carrier | Vehicle |
| Storage | 64 GB storage, maximum support 128GB TF card |
| Lidar Unit | Laser Model | Livox Avia |
| Measuring Range | 190m@10% Reflectivity, 260m@20% Reflectivity, 450m@80% Reflectivity |
| Laser class | 905nm Class1 (IEC 60825-1:2014) |
| Laser line number | Equivalent to 64-beam |
| Max. range | 450 M |
| Range Precision | 2 cm |
| data | Triple echo, 720,000 Points/Sec |
| FOV | 70° the circular view |
| POS Unit | POS type | AGS 303 |
| Update frequency | 200HZ |
| Heading accuracy | 0.017° |
| Pitch accuracy | 0.005° |
| Rolling accuracy | 0.005° |
| Position accuracy | 0.02 - 0.05m |
| GNSS signal type | GPSL1/L2 GLONASSL1/L2 BDS B1/B2a/B3 |
| Pre-processing software | POS software | Output information: position, speed, attitude |
| Point cloud software | Output point cloud data format: LAS format, custom TXT format |
| | | |
Application for Mobile Mapping & Survey
Package

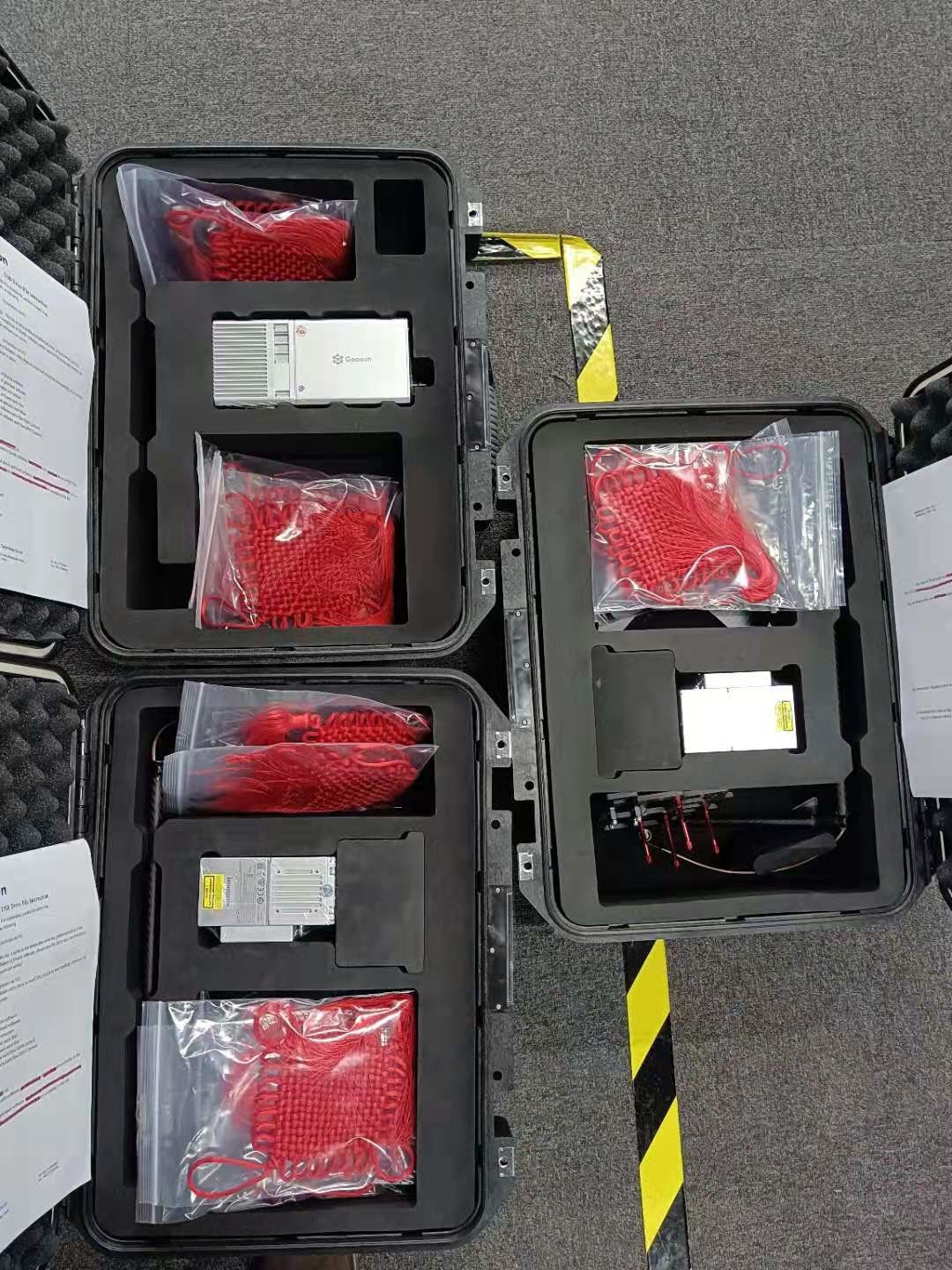

It is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
