Terrain Mapping UAV LiDAR GS-260X Colored Point Cloud High Accuracy Affordable Cost

Name: Terrain Mapping UAV LiDAR GS260X Colored Point Cloud High Accuracy Affordable Cost
Brand: Geosun
Price: 1 USD

Quality Terrain Mapping UAV LiDAR GS-260X Colored Point Cloud High Accuracy Affordable Cost for sale

Brand Name : Geosun

Model Number : GS-260X UAV LiDAR Scanning System

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 30 sets/month

Delivery Time : 10-15 works days

Packaging Details : Suit case 450*365*200 mm

Item Name : UAV LiDAR Scanning System

Operation Efficiency : 2.5 km2 / single flight

Application : Topography, Forestry, Powerline, Smart City

Channel : 32-channel

Accuracy : 10cm@150m

Material : Aluminum Alloy Body

Dimension : 14.2*10.9*12cm

Weight : 1.15kg

Storage : 64GB Max Support 128GB TF card

Working Temperature : -20°~+55°

Carrying Platform : Multi-Rotor/VTOL

Trajectory Software : Shuttle

Point Cloud Software : gAirHawk

Contact Now

Terrain Mapping Drone LiDAR GS-260X Colored Point Cloud High Accuracy Affordable Cost

Geosun gAirHawk GS-260X UAV LiDAR Scanning System

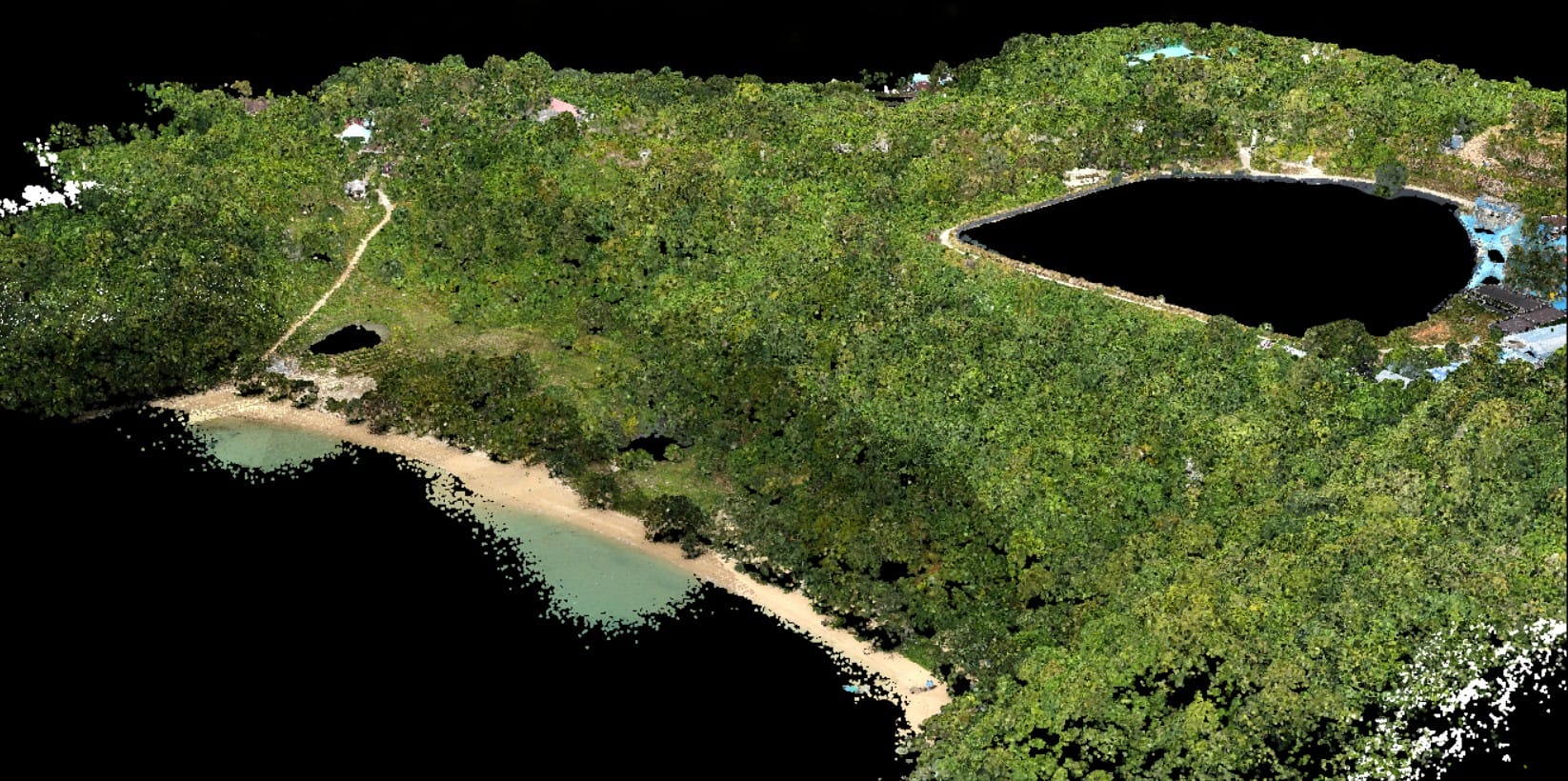

gAirHawk GS-260X is a kind of middle-range, compact LiDAR point cloud data acquisition system, integrated HESAI XTM2X laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.
For more specification please check here: gAirhawk GS-260X.pdf

Specification of UAV LiDAR Scanning System GS-260X

uav LiDAR scanning system gAirHawk GS-260X
	Item Name	System Parameters
UAV LiDAR Scanning System GS-260X	Weight	1.15kg
	Measuring accuracy	Less than 0.1m/0.05m(@150m)
	Working temperature	-20℃~+65℃
	Power range	12V- 24V
	Consumption	10W
	Carrying Platform	GS-800, DJI M300, M600 PRO and Other brand
	Storage	64 GB storage, maximum support 128GB TF card
Lidar Unit	Measuring Range	80m@10% Reflectivity (Max 300m)
	Laser class	905nm Class1 (IEC 60825-1:2014)
	Channel	32-channel
	Range accuracy	±1cm (typical Value)
	Scanning frequency	10HZ, 20HZ
	data	Trible-echo 1,920,000 Points/Sec
	FOV	360°, adjustable
	Laser sensor	HESAI XTM2X
POS Unit	Update frequency	200HZ
	Heading accuracy	0.017°
	Pitch accuracy	0.005°
	Rolling accuracy	0.005°
	Position accuracy	≤0.05m
	GNSS signal type	GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
Pre-processing software	POS software	Output information: position, speed, attitude
Pre-processing software	Point cloud software	Output point cloud data format: LAS format, custom TXT format
Camera(built-in)	FOV	83 Degree
	Effective Pixel	26 Mega Pixel
	Focal Length(mm)	16

Application of UAV LiDAR Scanning System GS-260X

Free Trial Software UAV LiDAR Scanning System GS-260X
Free trial test, achieve high precision
The Guideline of LiDAR Usage and Reference.pdf
Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation

Package of uav LiDAR scanning system GS-260X
uav LiDAR scanning system GS-260X is packed by suit case with EVA material liner inside, then covered by hard carton box.
The package of uav LiDAR scanning system is suitable for air shipment and sea shipment.
